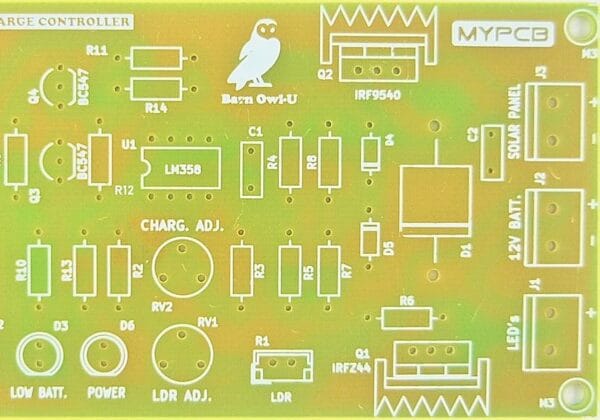

Name: 12V 10A Solar Charge Controller Dusk to Dawn function for Street Lights PCB only
Brand: MYPCB
SKU: BARNY_PCB
Availability: InStock

12V 10A Solar Charge Controller Dusk to Dawn function for Street Lights PCB only

Solar Panel Support – 10 watt to 100 watts Open Circuit Voltage – 17v to 24 volts DC, Max Current – 10 Amperes.
Charging Controller – Op – Amp Controlled P – Channel MOSFET , Linear Voltage Control Charging with LDO ( low drop out ) of 0.7 volts. High Efficiency.
Battery Support – 1 Ah to 60 Ah Lead Acid or Sealed Lead Acid ( SLA ) Battery, Ni -Cd Battery, Lithium Battery.
LED Lights Support – 12 volt 1 watt to 50 watt LED Street Lights , LED panels.
12 V 10 A Solar Charge Controller with Dusk to Dawn function for Street Lights – PCB only
Dusk to Dawn Function – LDR controlled N – Channel MOSFET, supports load up to 50 Watts.

Standard Components – All components used are available online or at your local electronics store.
No SMD components used – Only through hole components used, making soldering and replacement hassle free.
Low cost – This amplifier can be made in a fraction of cost compared to similar amplifiers available in market.
12 V 10 A Solar Charge Controller with Dusk to Dawn function for Street Lights – PCB only
Compatible / Replacement Part no.
P – Channel MOSFETS ( Q2 )
IRF9540, IRF4905, IRF5305, IRF9Z24, IRF9Z34
N – Channel MOSFETS ( Q1 )
IRF540, IRF3205, IRFZ44, IRFZ48, STP55NF06
Transistor ( Q3 Q4 )
BC546-547-548-549-550
OP – Amp ic ( U1 )
LM358 NE5532, TL072, JRC4558, LM833,
