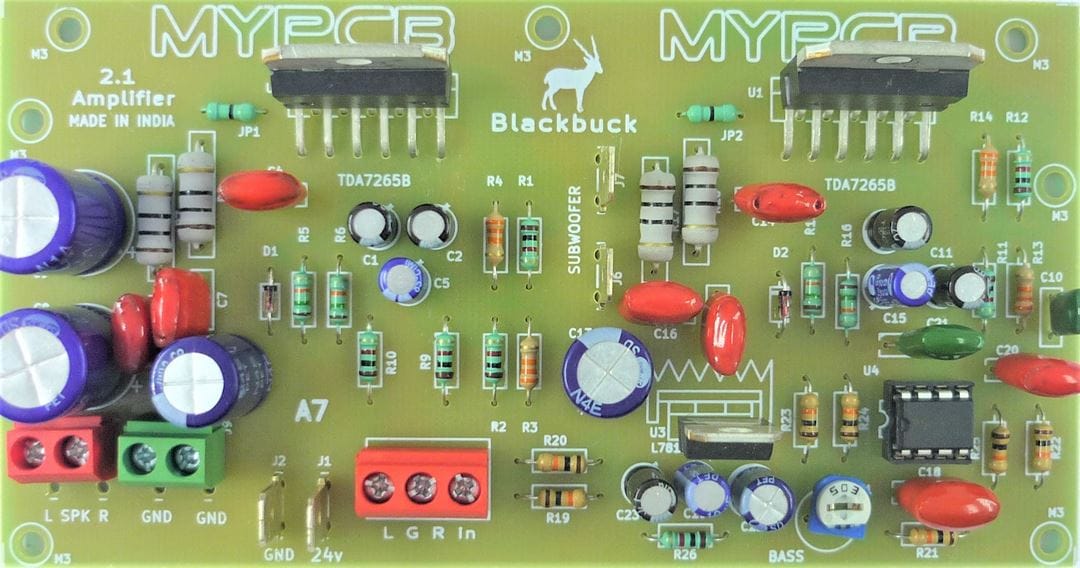

The TDA7265 2.1 Channel Amplifier Board is designed for compact home theater and multimedia audio systems where a dedicated subwoofer channel is required along with stereo left and right outputs. It provides a practical solution for building a 2.1 speaker system without complex external crossover circuitry.
This documentation explains the board from a practical build and power perspective, focusing on correct supply voltage, speaker connections, and real-world usage rather than theoretical specifications.
Amplifier Configuration (2.1 Channel)
This board is based on the TDA7265 audio amplifier IC and is configured to provide three output channels:
- Left channel – 30W
- Right channel – 30W
- Subwoofer channel – up to 60W
The subwoofer output is derived using onboard filtering, allowing low-frequency signals to be routed to a dedicated speaker without requiring an external crossover module.
Output Power Explanation
The output power depends on supply voltage, load impedance, and thermal conditions. Under correct operating conditions, the board delivers sufficient power for small to medium room home theater setups.
Actual usable power is determined by continuous operation limits rather than peak ratings, especially for the subwoofer channel.
Power Supply Requirements
The TDA7265 amplifier board requires a dual-rail DC power supply. Power is typically derived from a center-tapped transformer followed by rectification and filtering.
Typical supply characteristics
- Center-tapped transformer
- DC rails approximately ±18V to ±25V after rectification
- Adequate current capability for three channels
Using incorrect voltage or insufficient current capacity will result in distortion, overheating, or IC protection shutdown.
Speaker Compatibility
The board is commonly used with:
- Left / Right speakers: 4Ω or 8Ω
- Subwoofer: typically 4Ω
Ensure that speaker impedance matches the design limits to prevent excessive current draw and thermal stress.
Heatsink and Cooling
Although the TDA7265 is an integrated amplifier IC, it dissipates significant heat when driving a subwoofer channel. A properly sized heatsink is mandatory.
- Use thermal compound between IC and heatsink
- Ensure firm mechanical mounting
- Provide ventilation around the heatsink
Insufficient cooling will trigger thermal protection and reduce output performance.
Input and Grounding Considerations
The board accepts standard line-level audio input. Input wiring should be kept short and routed away from the power supply and speaker output wiring.
For best noise performance, use a common ground reference and avoid ground loops between audio source, power supply, and amplifier board.
Typical Applications
- 2.1 channel home theater systems
- PC and multimedia speaker systems
- TV audio enhancement setups
- DIY compact subwoofer projects
Initial Power-Up Checklist
- Verify correct power supply polarity
- Check speaker connections before power-on
- Mount the IC securely on a heatsink
- Power on initially at low volume
- Monitor temperature during first use
FAQ
Is this board suitable for a small home theater?
Yes. It is designed specifically for compact 2.1 channel home theater and multimedia systems.
Can I use a single power supply instead of dual-rail?
No. The amplifier requires a dual-rail positive and negative supply for proper operation.
Does the board include a subwoofer low-pass filter?
Yes. The board includes onboard filtering to route low-frequency signals to the subwoofer channel.
Is an external speaker protection circuit required?
Speaker protection is recommended if the application involves frequent power cycling or high output levels.
Can this board be used continuously at high volume?
Continuous high-volume use requires proper heatsinking and adequate power supply capacity.
