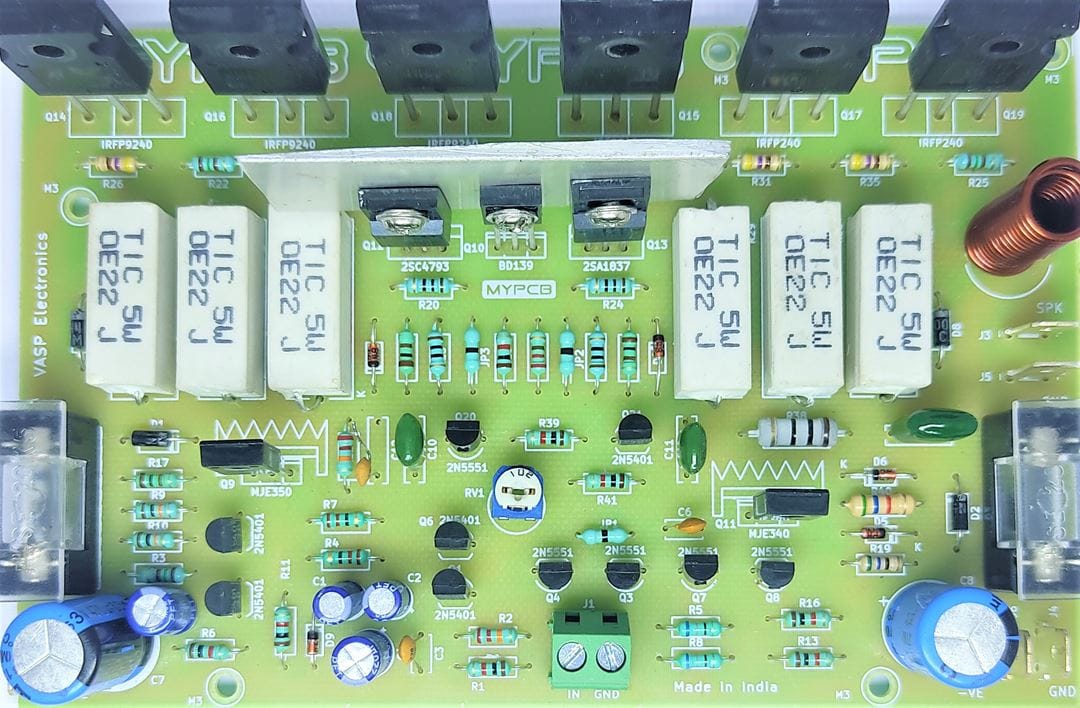

600 Watt MOSFET Amplifier Board – Technical Overview
This 600 Watt MOSFET Amplifier Board is a high‑power mono audio amplifier intended for serious audio applications where voltage headroom, current delivery, and thermal management are critical. This is not a beginner‑level amplifier. It is designed for users who understand power supplies, load impedance, heat dissipation, and safe high‑power operation.
Amplifier Topology and Output Stage
The amplifier uses a discrete MOSFET output stage configured in a Class‑AB topology. Power MOSFETs are selected for their ability to handle high drain current, tolerate thermal stress, and remain stable under heavy load conditions. Compared to IC‑based amplifiers, this design allows significantly higher output power and serviceability, but places greater responsibility on system design.
Electrical Specifications
| Amplifier Type | Discrete MOSFET Audio Power Amplifier |
| Maximum Output Power | Up to 600 W (dependent on supply voltage and load) |
| Channel Configuration | Mono |
| Amplifier Class | Class‑AB |
| Speaker Load | 4 Ω and 8 Ω (high‑power speakers recommended) |
Operating Voltage and Power Supply Requirements
Correct power supply selection is mandatory for safe and stable operation. This amplifier operates on a dual‑rail DC supply derived from a center‑tapped transformer.
- Supported DC supply range: 24 V to 55 V DC
- Recommended transformer: 35‑0‑35 VAC
- Recommended transformer current rating: 5 A to 10 A
The transformer, rectifier, and filter capacitors must be rated to handle high current peaks. Undersized transformers or insufficient reservoir capacitance will result in voltage sag, reduced output power, distortion, and possible amplifier instability.
Load Handling and Output Capability
At this power level, speaker impedance and wiring quality directly affect amplifier behavior. The amplifier can drive 4 Ω and 8 Ω loads when the power supply and cooling system are correctly designed. Operation below the recommended load impedance is not advised and may result in excessive current draw and device failure.
- Use low‑resistance speaker cables
- Ensure secure, high‑current output connections
- Do not exceed rated load conditions
Thermal Management Requirements
Thermal design is a critical part of this amplifier system. At high output levels, MOSFETs dissipate significant heat. Large heat sinks are mandatory, and forced air cooling is strongly recommended for sustained high‑power operation.
Insufficient cooling will lead to thermal stress, reduced reliability, and eventual device failure.
Installation and Commissioning
- Mount all MOSFETs securely on properly rated heat sinks
- Use electrical isolation where required
- Verify correct power rail polarity before power‑up
- Perform initial testing with a current‑limited supply or series bulb tester
- Check for DC offset at the output before connecting speakers
Intended Applications
- High‑power subwoofer amplifier systems
- Professional PA and DJ audio systems
- Advanced DIY high‑power audio projects
FAQ
What DC voltage range does this amplifier operate on?
It operates on a dual‑rail DC supply between 24 V and 55 V.
What transformer rating is recommended?
A 35‑0‑35 VAC transformer rated between 5 A and 10 A is recommended, depending on intended output power and duty cycle.
Is this amplifier suitable for beginners?
No. This amplifier is intended for users with experience in high‑power audio and power supply design.
Is forced air cooling required?
For continuous or near‑maximum power operation, forced air cooling is strongly recommended in addition to large heat sinks.
Can it drive 4 Ω subwoofers safely?
Yes, provided the power supply, cooling system, and wiring are designed to handle the required current safely.
